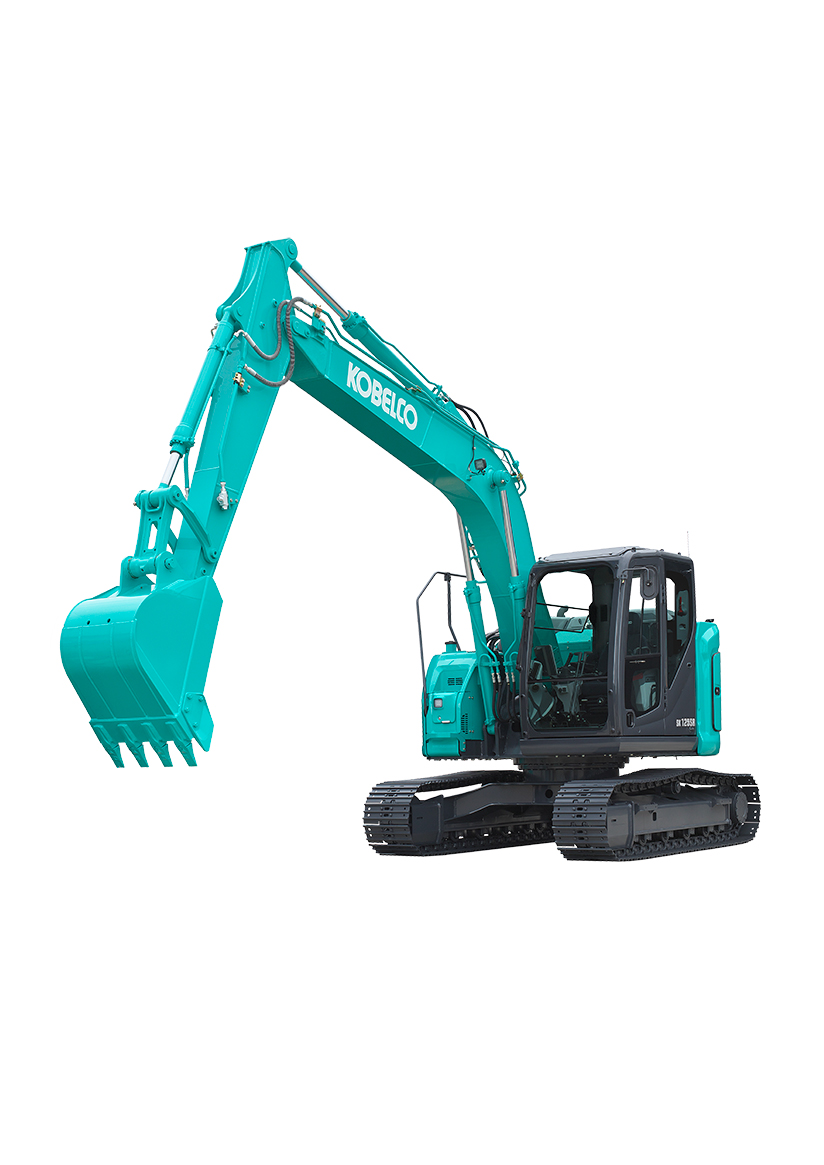

SK125SR-7

SK125SR-7

Engine	Model	Bucket Capacity
73 kW/ 2,000 min^-1 (ISO 14396 Without Fan)	ISUZU MOTORS LIMITED 4JJ1XDJA	0.24 - 0.57 m³

Engine	73 kW/ 2,000 min^-1 (ISO 14396 Without Fan)
Model	ISUZU MOTORS LIMITED 4JJ1XDJA
Bucket Capacity	0.24 - 0.57 m³

This series can be used for industry:: Construction & Civil Works; Agribusiness

Download Brochure: SK125SR-7.PDF

Main Specifications

Model Name		SK125SR
Machine Type		SK125SR-7

Engine

Model		ISUZU MOTORS LIMITED 4JJ1XDJA
Type		Four cycle, water cooled, overhead camshaft, vertical in-line,direct injection type, with turbocharger
Rated power output	kW/min^-1	65.4 / 2,000 (ISO 9249 with Fan) 73.0 / 2,000 (ISO 14396 without Fan)

Hydraulic System

Hydraulic Oil Tank (system)	L	89.9 (176)
Pump Type		Two variable displacement axial piston pumps + one gear pump
Pump Max.Discharge flow	L/min	2 x 130, 1 x 20

Swing System

Swing speed	min^-1{rpm}	11.0

Travel System

Travel Speed (high / low)	km/h	3.4 / 5.6
Drawbar pulling force	kN(SAE)	141
Gradeability	% ( º )	70 (35)
Travel motors		Variable displacement axial piston, two-speed motors

Refilling Capacities & Lubrications

Fuel Tank	L	186

Attachments

Bucket capacity ISO heaped	m³	0.24 - 0.57

Operating Weight & Ground Pressure

Operating Weight	kg	13,100 - 14,400
