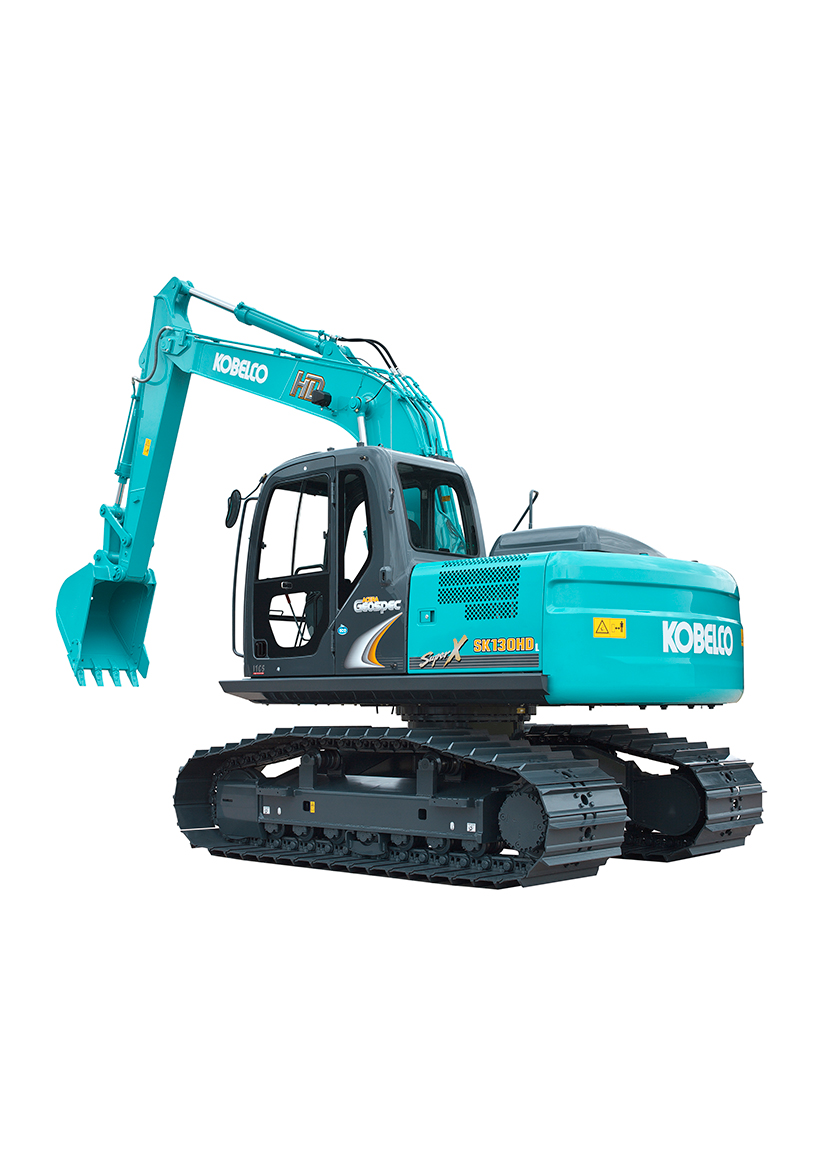

SK130HDL

SK130HDL

Engine	Model	Bucket Capacity
74.4 kW/ 2,000 min^-1 (ISO 14396 Without Fan)	MITSUBISHI D04FR-74kW	0.45 m³

Engine	74.4 kW/ 2,000 min^-1 (ISO 14396 Without Fan)
Model	MITSUBISHI D04FR-74kW
Bucket Capacity	0.45 m³

This series can be used for industry:: Forestry; Agribusiness

Download Brochure: SK130HDL.PDF

Main Specifications

Model Name		SK130HDL

Engine

Model		MITSUBISHI D04FR-74kW
Type		Direct injection, water cooled, 4-cylce, 4-cylinder diesel engine with turbocharger, intercooler
Rated power output	kW/min^-1	69.2 / 2,000 (ISO 9249 With Fan) 74.4 / 2,000 (ISO 14396 Without Fan)

Hydraulic System

Hydraulic Oil Tank (system)	L	104 (172)
Pump Type		Two variable displacement pumps + one gear pump
Pump Max.Discharge flow	L/min	2 x 130, 1 x 20

Swing System

Swing speed	min^-1{rpm}	11.0

Travel System

Travel Speed (high / low)	km/h	4.8 / 2.4
Gradeability	% ( º )	70 (35)
Travel motors		2 x axial-piston, two-step motors
Drawbar pulling force	kN{kgf}	196 {19,900} (ISO 7467)

Refilling Capacities & Lubrications

Fuel Tank	L	275

Attachments

Bucket capacity ISO heaped	m³	0.45

Operating Weight & Ground Pressure

Operating Weight	kg	15,000
Ground Pressure	kPa	25.1
