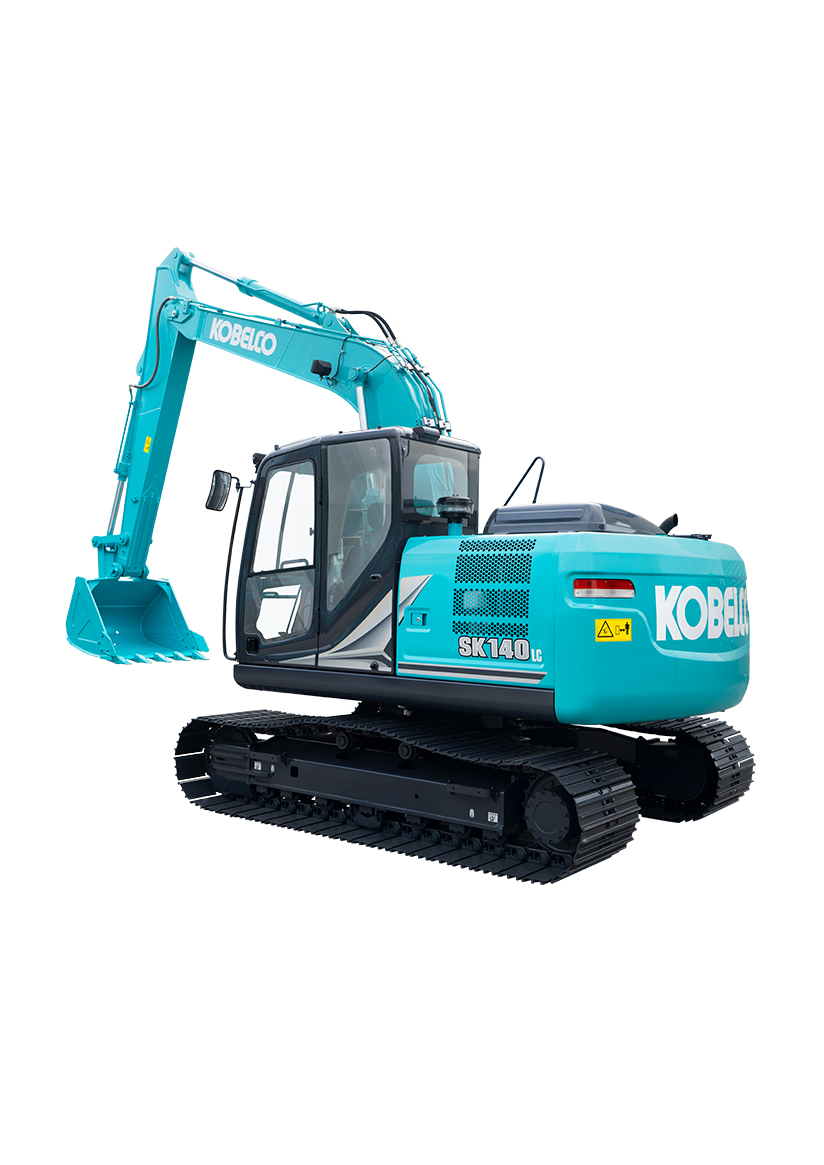

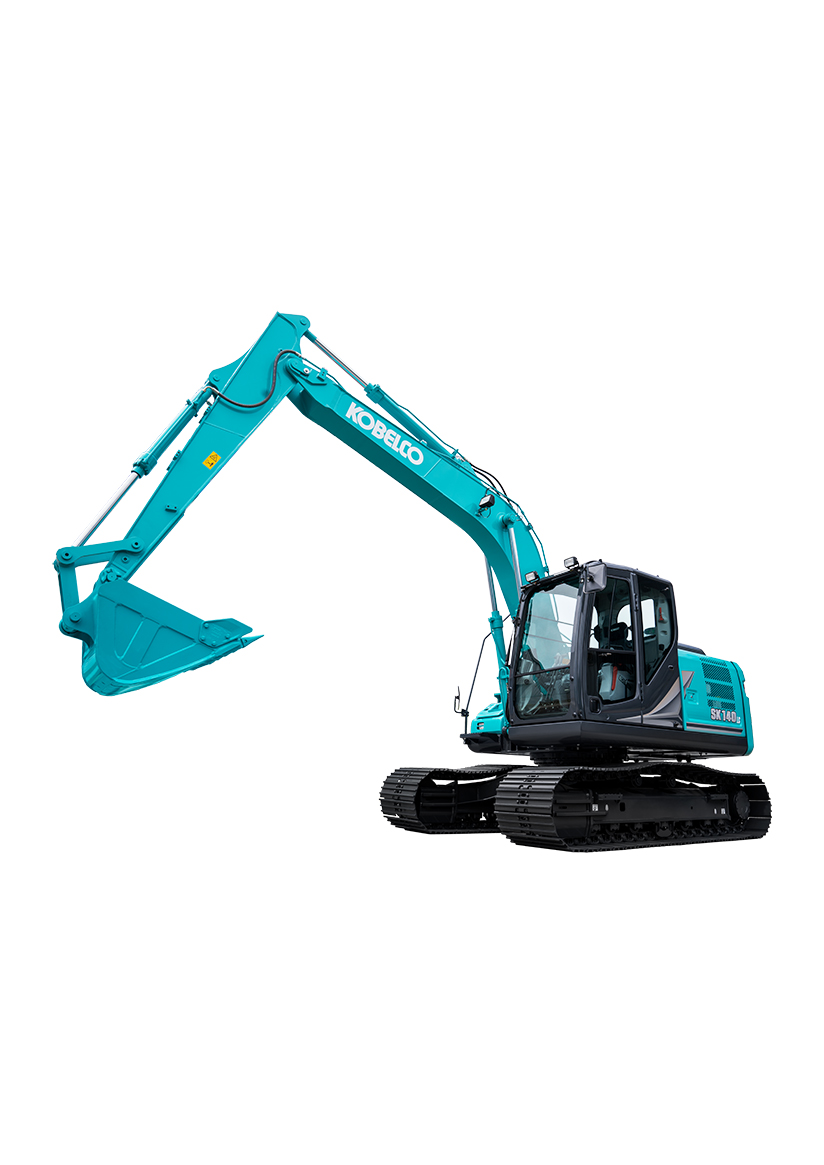

SK140LC-11 (For Thailand, Cambodia, Laos)

SK140LC-11

Engine	Model	Bucket Capacity
73kW / 2,000 min^-1 (ISO 14396 Without Fan)	ISUZU GG-4JJ1XKSK-02	0.57 - 0.65 m³

Engine	73kW / 2,000 min^-1 (ISO 14396 Without Fan)
Model	ISUZU GG-4JJ1XKSK-02
Bucket Capacity	0.57 - 0.65 m³

This series can be used for industry:: Construction & Civil Works; Agribusiness

Download Brochure: SK140LC-11.PDF

Main Specifications

Model Name		SK140LC
Machine Type		SK140LC-11

Engine

Model		ISUZU GG-4JJ1XKSK-02
Type		Four cycle, water cooled, overhead camshaft, vertical in-line,direct injection type, with turbocharger
Rated power output	kW/min^-1	65.4 / 2,000 (ISO 9249 With Fan) 73.0 / 2,000 (ISO 14396 Without Fan)

Hydraulic System

Hydraulic Oil Tank (system)	L	96.7 (180)
Pump Type		Two variable displacement piston pumps + one gear pump
Pump Max.Discharge flow	L/min	2 x 130, 1 x 20

Swing System

Swing speed	min^-1{rpm}	11.0

Travel System

Travel Speed (high / low)	km/h	5.6 / 3.4
Drawbar pulling force	kN(SAE)	141
Gradeability	% ( º )	70 (35)
Track shoes		Triple grouser shoes
Track shoe	mm	500 / 600 / 700
Travel motors		Variable displacement axial piston, two-speed motors

Refilling Capacities & Lubrications

Fuel Tank	L	280

Attachments

Bucket capacity ISO heaped	m³	0.57　0.60　0.65
Bucket capacity ISO Struck	m<sup>3</sup>	0.40　0.41　0.48
Opening width with side cutter	mm	1,150 1,180 1,110
Opening width without side cutter	mm	1,070 1,100 1,020

Operating Weight & Ground Pressure

Operating Weight	kg	13,700 - 14,900
