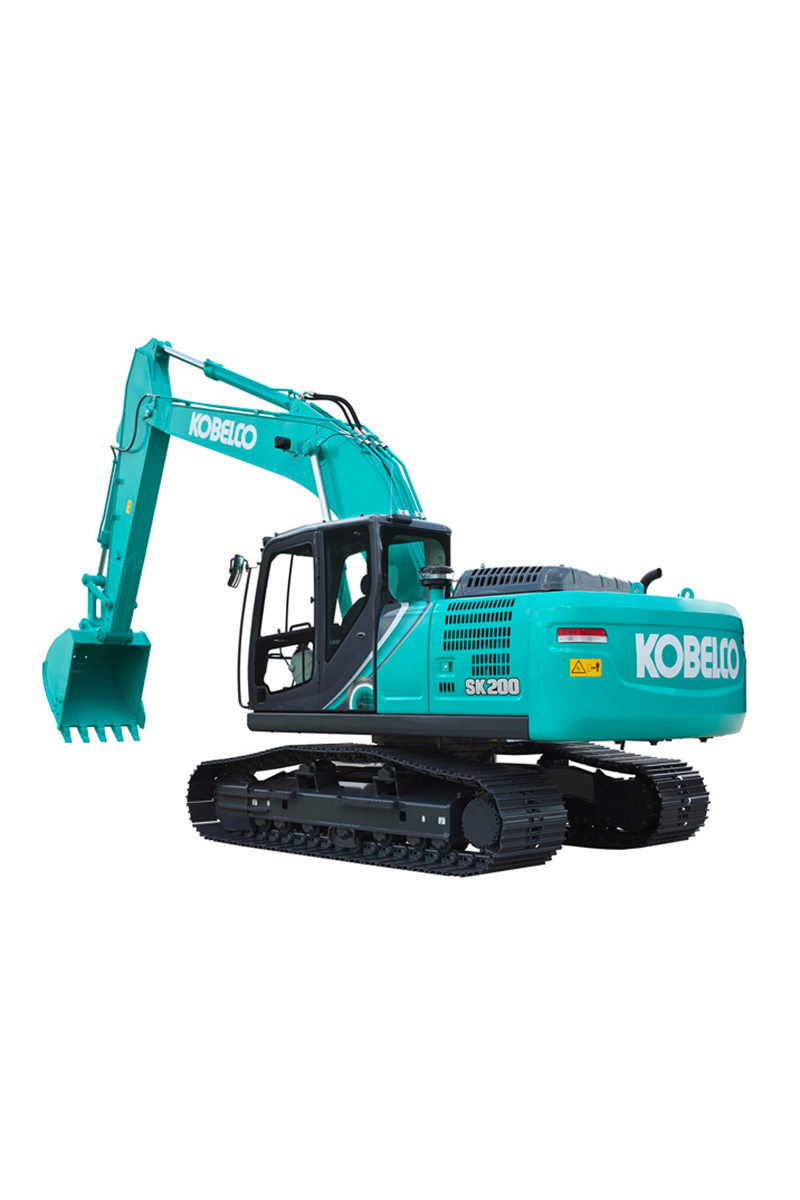

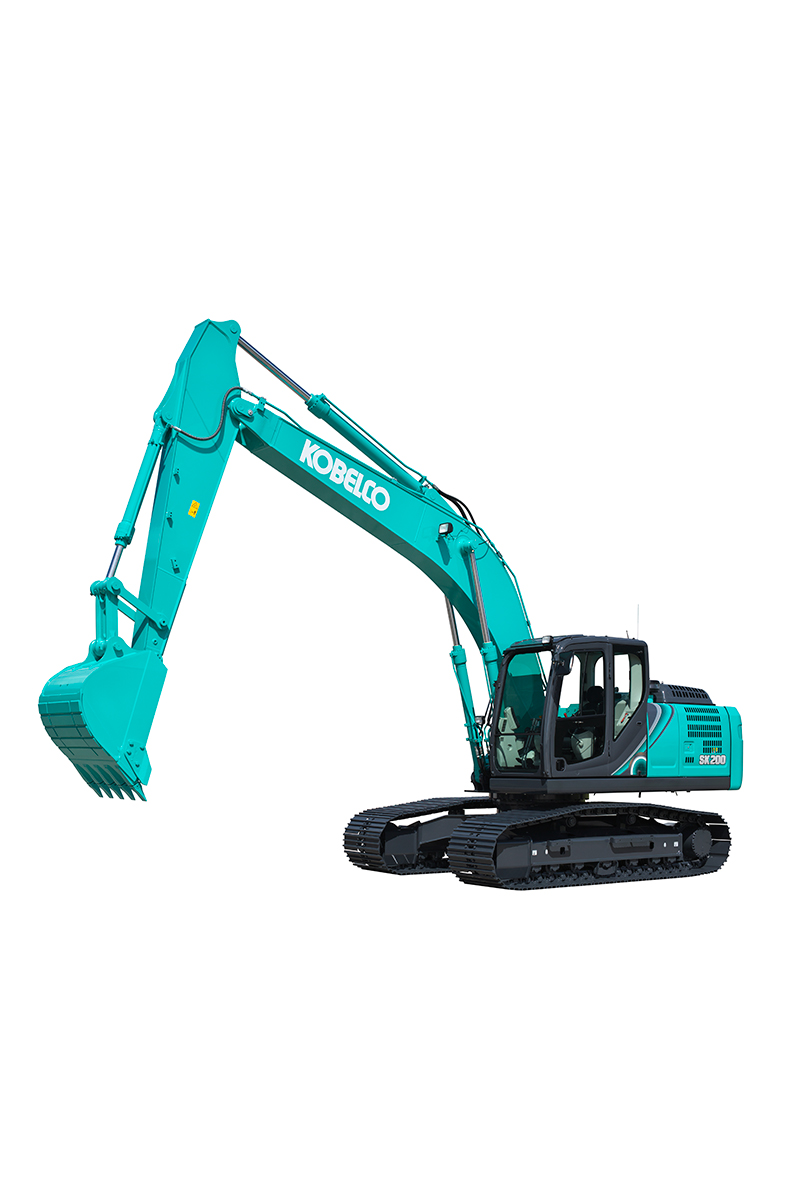

SK200-10 (SK210LC-10)

SK200-10 (SK210LC-10)

Engine	Model	Bucket Capacity
118 kW/2,000 min^-1 (ISO 14396)	HINO J05ETA-KSSK, HINO J05ETG-KSSG	0.93 m³

Engine	118 kW/2,000 min^-1 (ISO 14396)
Model	HINO J05ETA-KSSK, HINO J05ETG-KSSG
Bucket Capacity	0.93 m³

Download Brochure: SK200-10 (SK210LC-10) For Singapore, Bhutan.PDF; SK200-10 (SK210LC-10) For Thailand, Cambodia, Laos.PDF; SK200-10 (SK210LC-10) For Indonesia, Malaysia.PDF; SK200-10 (SK210LC-10) For Philippines, Viet Nam, Myanmar, Sri Lanka.PDF

Main Specifications

Model Name	SK200	SK210LC
Machine Type	SK200-10	SK210LC-10

Engine

Model		For Singapore, Bhutan: HINO J05ETA-KSSK For Thailand, Cambodia, Laos, Indonesia, Malaysia, Philippines, Viet Nam, Myanmar, Sri Lanka: HINO J05ETG-KSSG
Type		For Singapore, Bhutan: Four-stroke liquid-cooled direct injection diesel turbo charged with intercooler (Stage 3-compliant engine) For Thailand, Cambodia, Laos, Indonesia, Malaysia: Direct injection, water-cooled, 4-cycle diesel engine with turbocharger, intercooler For Philippines, Viet Nam, Myanmar, Sri Lanka Four-stroke liquid-cooled direct injection diesel turbo charged with intercooler
Rated power output	kW/min^-1	114 / 2,000 (ISO 9249) 118 / 2,000 (ISO 14396)

Hydraulic System

Hydraulic Oil Tank	L	System 244 / Tank level 140
Pump Type		Two variable displacement pumps + one gear pump
Pump Max.Discharge flow	L/min	For Singapore, Bhutan, Philippines, Viet Nam, Myanmar, Sri Lanka: 2 x 220 , 1 x 21 For Thailand, Cambodia, Laos, Indonesia, Malaysia: 2 x 220 , 1 x 20

Swing System

Swing speed	min^-1{rpm}	13.3

Travel System

Travel Speed	km/h	6.0 / 3.6
Drawbar pulling force	kN	228 (ISO 7464)
Gradeability	% ( º )	70 (35)
Track shoes		Triple grouser shoes
Track shoe	mm	600 / 700 / 800
Travel motors		For Singapore, Bhutan, Philippines, Viet Nam, Myanmar, Sri Lanka: Variable displacement piston pump For Thailand, Cambodia, Laos, Indonesia, Malaysia: 2 x axial-piston, two-step motors

Refilling Capacities & Lubrications

Fuel Tank	L	320

Attachments

Bucket capacity ISO heaped	m³	0.80 / 0.80 Side pin type / 0.93 / 0.93 Side pin type
Bucket capacity ISO Struck	m³	0.59 / 0.59 / 0.67 / 0.67
Bucket Opening Wide With side cutters	mm	1,160 / 1,160 / 1,330 / 1,300
Bucket Opening Wide Without side cutters	mm	For Singapore, Bhutan: 1,140 / 1,140 / 1,230 / 1,200 For Thailand, Cambodia, Laos, Indonesia, Malaysia, Philippines, Viet Nam, Myanmar, Sri Lanka: 1,140 / 1,060 / 1,230 / 1,200

Operating Weight & Ground Pressure

Operating Weight SK200	kg	20,700 / 21,100 / 21,400 21,000 / 21,400 / 21,600 21,100 / 21,300 / 21,600 20,700 / 21,100 / 21,400
Operating Weight SK210LC	kg	21,100 / 21,600 / 21,800 21,400 / 21,800 / 22,100 21,500 / 21,800 / 22,100 21,100 / 21,600 / 21,800
