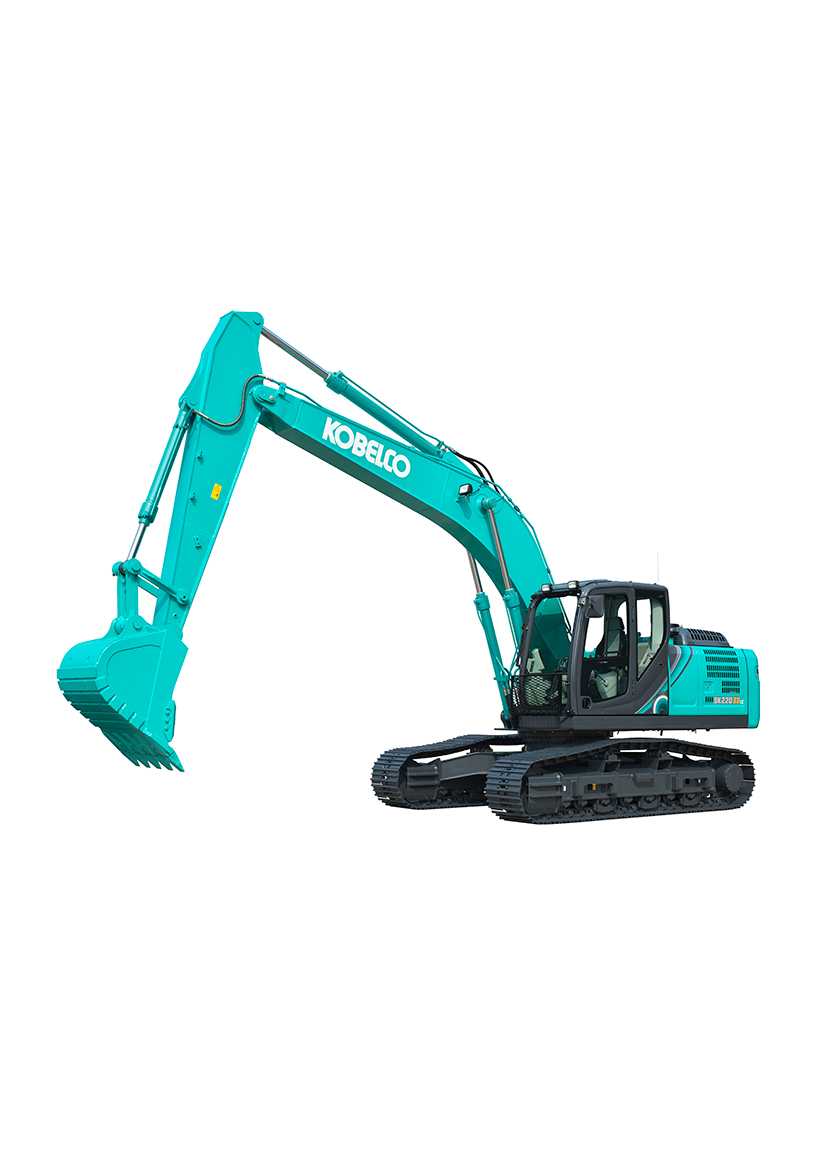

SK220XDLC-10 (For Myanmar)

SK220XDLC-10

Engine	Model	Bucket Capacity
118 kW/ 2,000 min^-1 (ISO 14396)	HINO J05E	0.80 - 0.93m³

Engine	118 kW/ 2,000 min^-1 (ISO 14396)
Model	HINO J05E
Bucket Capacity	0.80 - 0.93m³

This series can be used for industry:: Forestry; Mining & Quarries; Construction & Civil Works; Agribusiness

Download Brochure: SK220XDLC-10.PDF

Main Specifications

Model Name		SK220XDLC
Machine Type		SK220XDLC-10

Engine

Model		HINO J05E
Type		Four-stroke liquid-cooled direct injection diesel turbo charged with intercooler
Rated power output	kW/min^-1	114 / 2,000 (ISO 9249) 118 / 2,000 (ISO 14396)

Hydraulic System

Hydraulic oil tank (system)	L	140 (244)
Pump Type		Two Variable displacement piston pumps + one gear pump
Pump Max.Discharge flow	L/min	2 x 220 , 1 x 20

Swing System

Swing speed	min^-1{rpm}	13.3

Travel System

Travel Speed (high / low)	km/h	6.0 / 3.6
Drawbar pulling force	kN(SAE)	227
Gradeability	% ( º )	70 (35)
Travel motors		2 x axial-piston, two-step motors

Refilling Capacities & Lubrications

Fuel Tank	L	320

Attachments

Bucket capacity ISO heaped	m³	0.80 - 0.93
Bucket cylinder	mm	120 × 1,080

Operating Weight

Operating Weight	kg	22,200 - 22,700
