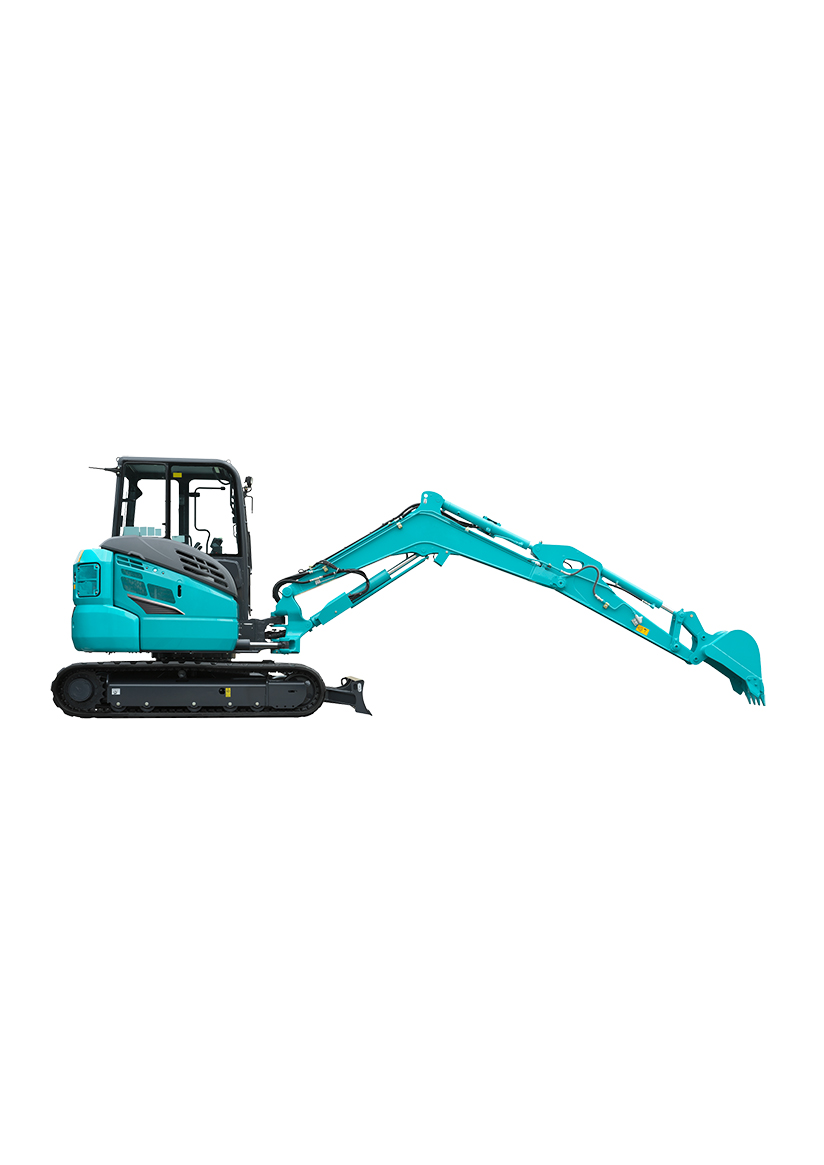

SK45SR-6

SK45SR-6

Engine	Model	Bucket Capacity
29.6 kW/ 2,400 min^-1 (ISO 14396)	YANMAR-4TNV88-B	0.18 m³

Engine	29.6 kW/ 2,400 min^-1 (ISO 14396)
Model	YANMAR-4TNV88-B
Bucket Capacity	0.18 m³

Download Brochure: SK45SR-6.PDF

Machine Type		SK45SR-6

Engine

Model		YANMAR-4TNV88-B
Type		Water cooled, 4-cycle, 4-cylinder, direct injection, diesel engine
Rated power output	kW/min^-1	29.6 / 2,400 (ISO 14396)

Hydraulic System

Hydraulic Oil Tank (system)	L	27.9 (57.7)
Pump		Two variable displacement pumps + One gear pump
Max.Discharge Flow	L/min	2 x 49.9, 1 x 33.8
Relief Valve Setting	MPa	23.0

Swing System

Swing speed	min^-1	8.8
Swing motors		Axial piston motor

Travel System

Travel Speed (high / low)	km/h	(Rubber) 4.0 / 2.3 (Steel) 3.7 / 2.1
Track shoe	mm	400
Track shoes		Rubber / Steel
Travel motors		2 x axial-piston, two-step motors

Refilling Capacities & Lubrications

Fuel Tank	L	75

Dozer Blade

Width x Height	mm	1,960 x 345

Side Digging Mechanism

Type		Boom swing

Attachments

Bucket Capacity	m³	0.18
Bucket Width	mm	700 (with side cutter)

Machine Mass & Ground Pressure

Machine Mass (canopy / cab)	kg	(Rubber) 4,440 / 4,560 (Steel) 4,590 / 4,700
Ground Pressure (canopy / cab)	kPa	(Rubber) 25.4 / 26.1 (Steel) 27.0 / 27.7
